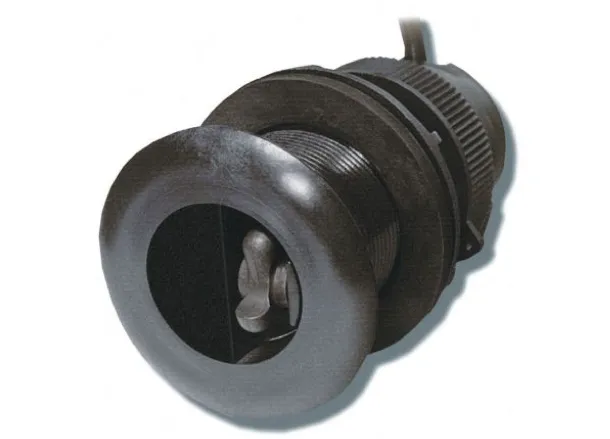

The DST800 is a Smart™, TRIDUCER® Multisensor that offers depth, speed, and temperature functions in one compact thru-hull fitting. Digital signal processing inside the housing provides depth, speed, and temperature data to a chart plotter, radar screen, or digital display, eliminating the need for a dedicated depth sounder. One hole in the boat's hull makes this TRIDUCER® Multisensor attractive to both boat builders and boat owners. And the retractable multisensor is available with NMEA 0183, NMEA 2000®, or custom CAN protocols. The wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled.
Key Features
- The all-in-one Smart Sensor.
- Depth, speed, and temperature in one compact housing.
- Available in NMEA 0183 and NMEA 2000® versions.
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel.
- Plastic, bronze, or stainless steel housings available.
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy.
- Available as a Smart Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz.
- Available in low-profile, countersunk, or beveled-edge housings.
